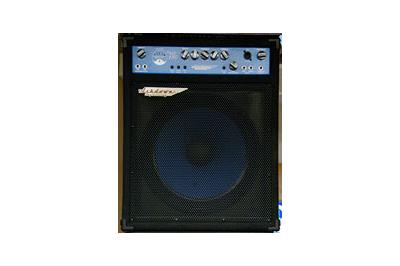

Ashdown EB15-180, controles

Ashdown Electric Blue bass amplification loads legendary Ashdown tone into an affordable new amp head and a pair of high-performance, high-value combos.

The EB 15-180 1 x 15" combo uses a 180 Watts RMS fan-cooled fast-transient power stage, and a fully-featured bass preamplifier with inputs for both active and passive instruments, an illumunated VU meter, 5 band EQ with Bright and Deep switches, a front panel-mounted balanced DI output for connection to a PA or recording console, an FX loop, a tuner/line output and the classic Ashdown sub-harmonic generator.

Consistent with its EVO II status, the combo also includes a built-in compressor to provide an exceptional level of sonic control for a bass amp of this size and cost.

A high-performance Ashdown BlueLine bass driver ensures exceptional attack, clarity and low-end performance, while an extension speaker output can be used to connect an additional cabinet for use in larger venues. The cabinet is finished in a tough, scuff-proof carpet covering with protective corners and a kick-proof metal grille.

SPECIFICATIONS

Power Output (RMS) 180W
Power Requirement 230 /115v
Speaker Configuration 1 x 15" BlueLine speaker
Frequency Response -3dB at 33Hz and 25KHz
Speaker Outputs Minimum impedance 4 Ohms
High Instrument Input Impedance 3.9MOhms / Input range 150mV - 20V p-p
Low Instrument Input Impedance 10KOhms / Input range 300mV - 40V p-p
Line Input Impedance 22k Ohms / Input level 0dBu nominal
DI Output 600 Ohms balanced / Level -20dBu nominal
Tuner Output Impedance 22k Ohms / Level 0dBu nominal
Signal to noise Better than 80dB (EQ flat)
EQ Bass +/-15dB @ 100Hz
Lo Mid +/-15dB @ 220Hz
Middle +/-15dB @ 660Hz
Hi Mid +/-15dB @ 1.6kHz
Treble +/-15dB @ 7kHz shelving
Deep +8dB @ 50Hz
Bright +10dB @ 10kHz
Effects Send Impedance 22k Ohms / Level 0dBu nominal
Effects Return Impedance 22k Ohms / Level 0dBu nominal
Distortion Less than 0.5% THD
H x W x D (mm) 581 x 474 x 300
Weight (kg) 29

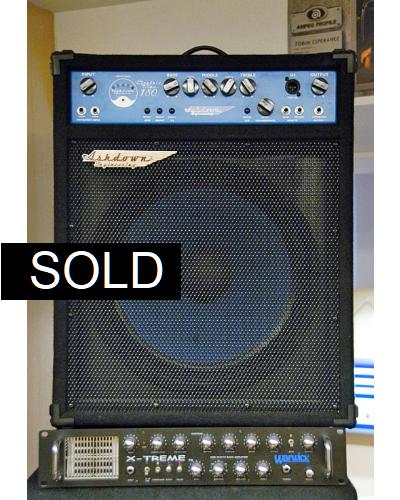

Ashdown EB 15-180

Ashdown EB 15-180

Enlace web http://www.ashdownmusic.com
